K0AKS-R
Low level Internet-linked 2 meter repeater

WAP version of these pages: http://wap.stevechampion.com
Location:DM04nf, Thousand Oaks, California (Map)
Frequency: 147.150 MHz + (147.150 output, 147.750 input)
CTCSS: 127.3 Hz
EchoLink Node No.: 5874 (Current Status)
Antenna: Cushcraft Ringo Ranger II (ARX2B) at 18ft

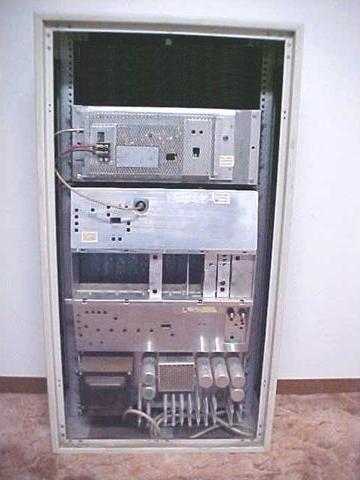

Transceiver: Motorola Micor Compa-Station Repeater
Output power: Approx. 10W (100W max)

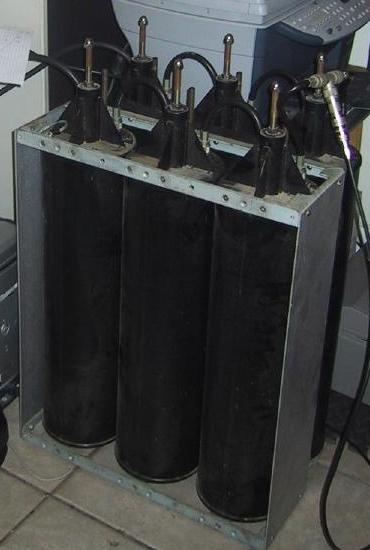

Cavities: Celwave 497-1 (6 x 505-1 cavities). Approx. 100dB isolation
Controller: NHRC-6
EchoLink computer: Dell 400MHz, Win98
Internet connection: ADSL

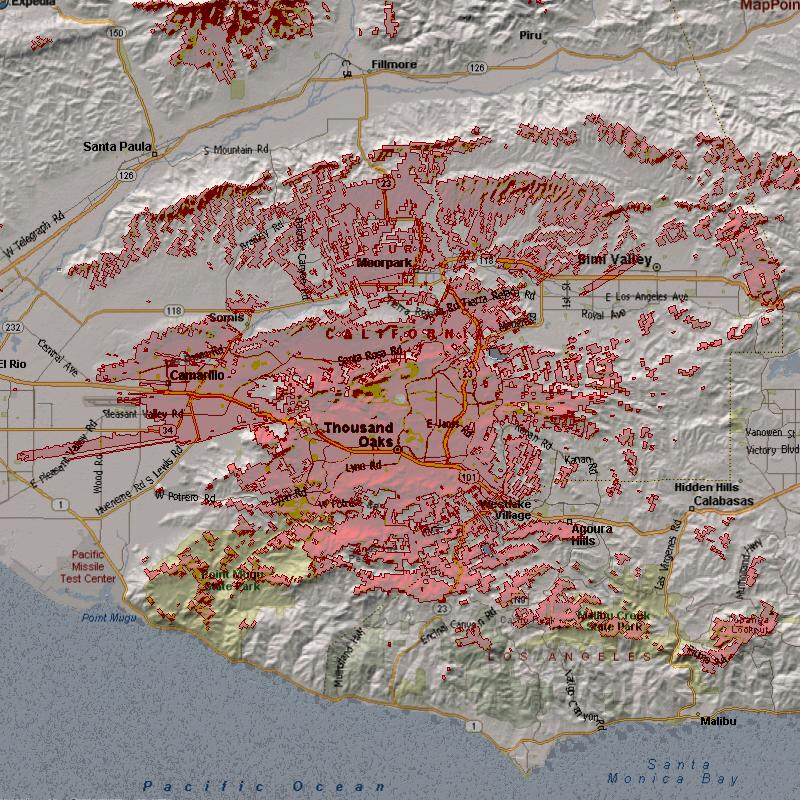

Coverage: Approximate coverage map for a 25W mobile
(mouse-over bottom right of map for zoom button)
Web site:link.stevechampion.com
